LCR HiTESTER (단종모델 대체품 IM3523)
Compact, dual-band 120Hz/1kHz LCR Meter for Integration into Automated Production Lines
- High speed measurement: 5 ms (1 kHz) or 13 ms (120 Hz)
- Built-in high-speed comparator
- Measurement frequency: 1 kHz/120 Hz selectable
- 제조사
- HIOKI
- 제품명
- LCR HiTESTER (단종모델 대체품 IM3523)

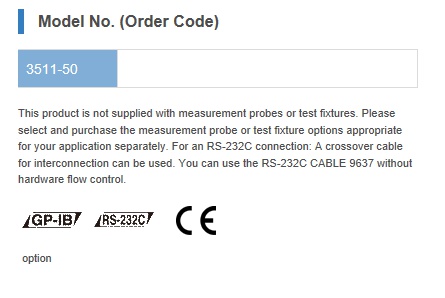

- 제품번호
- 3511-50
● High speed measurement: 5 ms (1 kHz) or 13 ms (120 Hz)
● Built-in high-speed comparator
● Measurement frequency: 1 kHz/120 Hz selectable
● From minute measurement with a maximum resolution of 0.01 pF to high-capacity measurement up to 1 F
● Print measured values and comparator results with the Printer 9442 (option)
