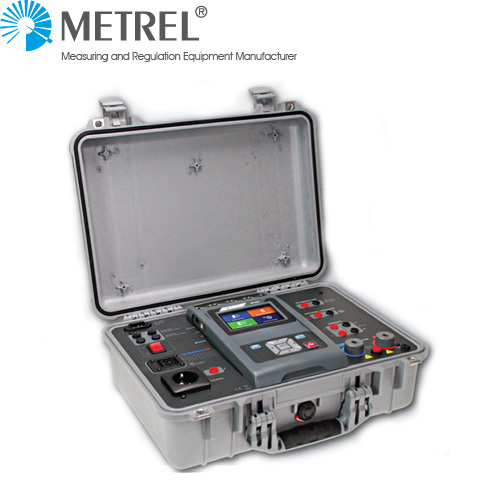

내전압/안전규격

AC/DC내전압/접지연속성/절연저항/누설전류/소비전력(저압,전류,주파수THD,역률)/잔류전압/컬러터치스크린, LAN, RS232,USB, 접점출력등

구매하기

1. 고전압 시험 사양 (HVAC & HVDC Specifications)

시험 구분 (Function)	측정 항목 (Parameter)	측정 범위 (Range)	분해능 (Resolution)	정확도 (Accuracy)
HVAC (100 V - 5100 V, 10V step)	시험 전압 (Test Voltage AC)	0 ... 1999 V	1 V	±(3% of reading)
	시험 전압 (Test Voltage AC)	2.00 ... 5.99 kV	10 V	±(3% of reading)
	피상 전류 (Apparent Current)	0.0 ... 99.9 mA	0.1 mA	±(3% of reading + 3 digits)
	용량성 전류 (Capacitive Current)	0.0 mA ... 99.9 mA	0.1 mA	참고용 (Indicative)
	저항성 전류 (Resistive Current)	-99.9 mA ... 99.9 mA	0.1 mA	참고용 (Indicative)
	단락 전류 (Short Circuit)	> 200 mA	-	참고용 (Indicative)
	출력 용량 (Output Power)	500 VA max	-	-
HVDC (500 V - 6000 V, 50V step)	시험 전압 (Test Voltage DC)	0 ... 1999 V	1 V	±(3% of reading)
	시험 전압 (Test Voltage DC)	2.00 ... 6.99 kV	10 V	±(3% of reading)
	시험 전류 (Test Current)	0.01 ... 9.99 mA	0.01 mA	±(5% of reading + 3 digits)
방전 시간 (Discharging Time)	방전 시간 (t)	0.0 ... 9.9 s	0.1 s	±(5% of reading + 3 digits)
방전 시간 (Discharging Time)	Up 전압	0 ... 550 V	1 V	±(5% of reading + 3 digits)

2. 연속성 및 절연저항 사양 (Continuity & Insulation Resistance)

시험 항목 (Function)	측정 범위 (Measuring Range)	분해능 (Resolution)	정확도 (Accuracy)
연속성 (Continuity) (0.2A, 4A, 10A, 25A)	0.000 Ω ... 1.999 Ω	0.001 Ω	±(2% of reading + 2 digits)
	2.00 Ω ... 19.99 Ω	0.01 Ω	±(2% of reading)
	20.0 Ω ... 99.9 Ω	0.1 Ω	±(3% of reading)
	100.0 Ω ... 199.9 Ω	0.1 Ω	±(5% of reading)
	200 Ω ... 999 Ω	1 Ω	참고용 (Indicative)
절연저항 (Riso / Riso-s) (250 V, 500 V, 1000 V)	0.00 MΩ ... 19.99 MΩ	0.01 MΩ	±(3% of reading + 2 digits)
	20.0 MΩ ... 199.9 MΩ	0.1 MΩ	±(10% of reading)
	출력 전압 (0 V ... 1200 V)	1 V	±(3% of reading + 2 digits)
절연저항 (Riso / Riso-s) (50 V, 100 V)	0.00 MΩ ... 19.99 MΩ	0.01 MΩ	±(5% of reading + 2 digits)
	20.0 MΩ ... 199.9 MΩ	0.1 MΩ	±(20% of reading)
	출력 전압 (0 V ... 1200 V)	1 V	±(3% of reading + 2 digits)

3. 누설전류 및 전력 사양 (Leakage Current & Power Specifications)

측정 항목 (Function)	측정 범위 (Measuring Range)	분해능 (Resolution)	정확도 (Accuracy)
대체 누설전류 (Isub / Isub s) (Open circuit < 50 V AC)	0.00 mA ... 19.99 mA	10 µA	±(5% of reading + 3 digits)
차동 누설전류 (Idiff)	0.00 mA ... 19.99 mA	0.01 mA	±(3% of reading + 5 digits)
PE 누설전류 (Ipe)	0.00 mA ... 19.99 mA	0.01 mA	±(3% of reading + 3 digits)
접촉 누설전류 (Itou)	0.00 mA ... 19.99 mA	0.01 mA	±(3% of reading + 3 digits)
유효 전력 (P)	0.00 W ... 19.99 VA	0.01 VA	±(5% of reading + 5 digits)
	20.0 W ... 199.9 VA	0.1 VA	±(5% of reading)
	200 W ... 1999 VA	1 VA	±(5% of reading)
	2.00 kW ... 3.70 kVA	10 VA	±(5% of reading)
피상 / 무효 전력 (S / Q)	0.00 W ... 19.99 VA	0.01 VA	±(5% of reading + 10 digits)
	20.0 W ... 199.9 VA	0.1 VA	±(5% of reading)
	200 W ... 1999 VA	1 VA	±(5% of reading)
	2.00 kW ... 3.70 kVA	10 VA	±(5% of reading)
역률 (PF) / Cos φ	0.00i ... 1.00i / 0.00c ... 1.00c	0.01	±(5% of reading + 5 digits)
전압 전고조파 왜곡률 (THDU)	0.0% ... 99.9%	0.1%	±(5% of reading + 5 digits)
전류 전고조파 왜곡률 (THDI)	0 mA ... 999 mA	1 mA	±(5% of reading + 5 digits)
전류 전고조파 왜곡률 (THDI)	1.00 A ... 16.00 A	10 mA	±(5% of reading)
전압 (U)	0.1 V ... 199.9 V	0.1 V	±(3% of reading + 10 digits)
전압 (U)	200 V ... 264 V	1 V	±(3% of reading)
전류 (I)	0 mA ... 999 mA	1 mA	±(3% of reading + 5 digits)
전류 (I)	1.00 A ... 16.00 A	10 mA	±(3% of reading)

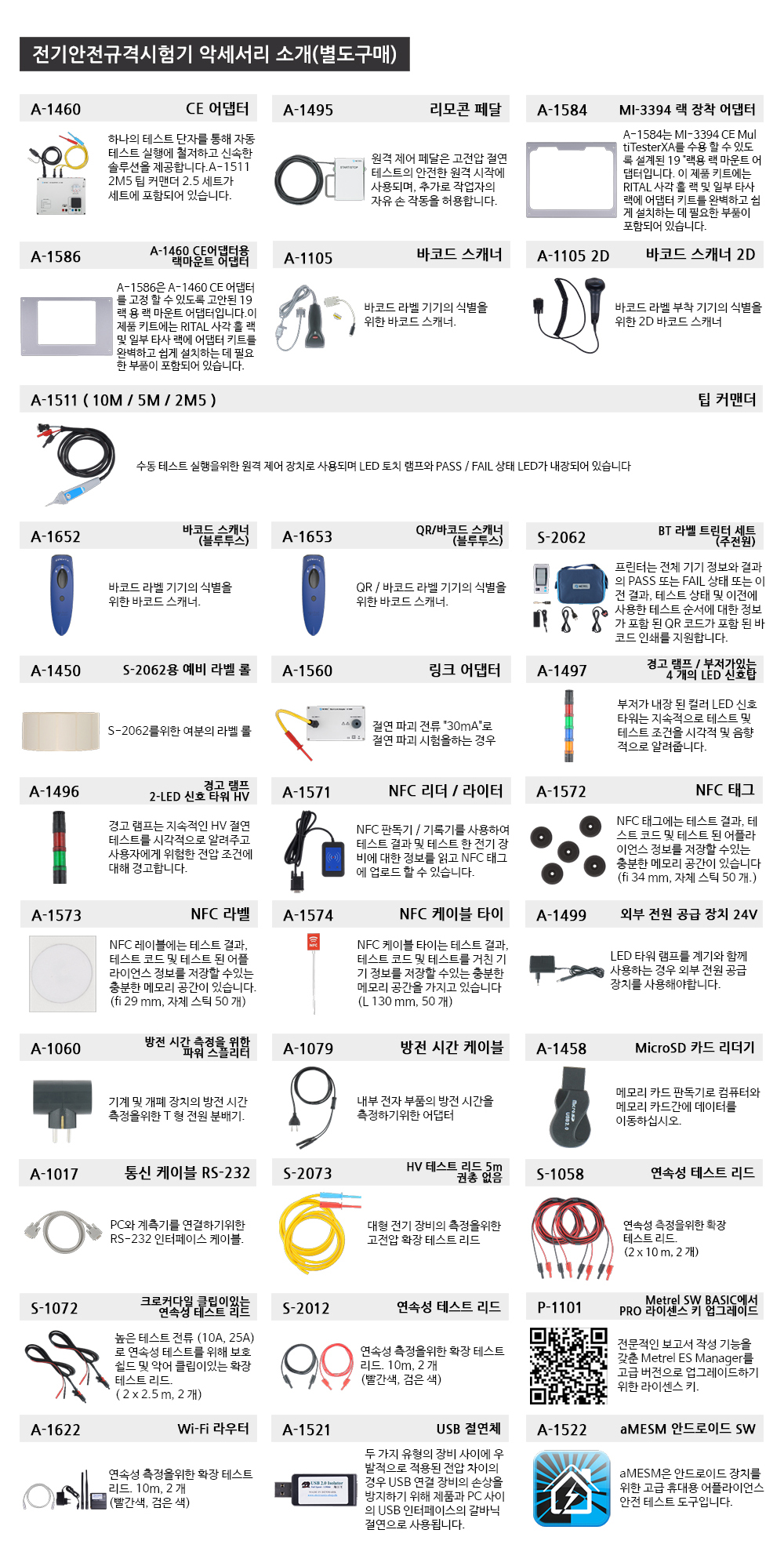

4. 일반 및 제품 사양 (General Specifications)

전원 공급 (Power Supply)	110 V / 230 V AC, 50 Hz / 60 Hz
과전압 범주 (Overvoltage Category)	CAT II / 300 V, CAT II / 600 V (DISCH1 / DISCH2 전용)
보호 등급 (Protection Class)	Class I
고전압 출력 (HV Output)	5 kV AC / 6 kV DC, 이중 절연 (Double insulation)
통신 인터페이스 (COM Port)	4 x RS232, 1 x USB, 1 x Bluetooth
외형 치수 (Dimensions - W x H x D)	43.5 cm x 29.2 cm x 15.5 cm
무게 (Weight)	17 kg
