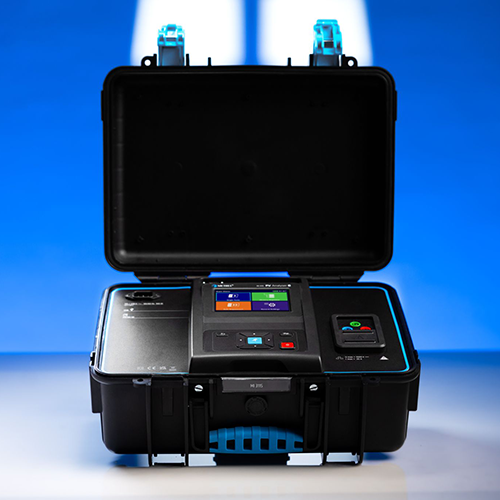

| TECHNICAL SPECIFICATION | ||
|---|---|---|
| Photovoltaic measurements | ||
| Function | Measuring range | Accuracy |
| Voltage | 20.0 ... 199.9 VDC 200 ... 1699 VDC |
±(1 % of reading + 2 digits) ±1 % of reading |
| Current | 0.10 ... 0.99 ADC 1.00 ... 9.99 ADC 10.00 ... 19.99 ADC |
±6 digits ±(1 % of reading + 3 digits) ±1 % of reading |
| Power | 0.2 ... 199.9 W 200 ... 1999 W 2.00 k ... 19.99 kW 20.0 k ... 29.9 kW |
±(2 % of reading + 5 digits) ±2 % of reading ±2 % of reading ±2 % of reading |
| I/U curve | 1500 V / 20 A / 24 kW | |
| Irradiation (A 1834) | 300 ... 999 W/m2 1.00 ... 1.75 kW/m2 |
±(4 % + 5 digits) ±4 % of reading |
| Temperature (A 1833) | -10.0 ... 85.0 ℃ | ±5 digits |
| Electrical installation measurements | ||
| Insulation resistance Roc-, Roc+ | ||
| Um = 250 V d.c. | 0.12 ... 19.99 MΩ 20.0 ... 199.9 MΩ |
±(5 % of reading + 3 digits) ±10 % of reading |
| Um = 500 V d.c., 1000 V d.c. and 1500 V d.c. |
0.12 ... 19.99 MΩ 20.0 ... 199.9 MΩ 200 ... 999 MΩ |
±(5 % of reading + 3 digits) ±5 % of reading ±5 % of reading |
| Insulation resistance Roc | Calculated value | |
| Continuity, 200 mA | 0.00 ... 19.99 Ω 20.0 ... 199.9 Ω 200 ... 1999 Ω |
±(3 % of reading + 3 digits) ±5 % of reading ±10 % of reading |
| General | Main unit | Remote unit |
| Display | Colour TFT display, 4.3”, 480 x 272 pixels with touch screen | 128x64 dots matrix display with backlight |
| Power supply | Li-ion, 14.4 V, 4400mAh, non-removable |
9 VDC (6x1.5 V battery or accu, size AA) |
| Overvoltage category Protection classification Pollution degree Degree of protection |
CAT II / 300V Reinforced insulation 2 IP 54 (cover closed) IP 40 (cover opened) |
IP 40 |
| Altitude | up to 4000 m | |
| Memory | Memory card slot, microSD card, up to 512 GB | Number of memorized results: > 3000, circular buffer |
| Connectivity RS232 USB Bluetooth Wi-Fi |
1 port, DB9 female USB 2.0, standard Type-B v4.2 BR/EDR and BLE specification 802.11 b/g/n (802.11n up to 150 Mbps) (Only for communication with A 1785 - PV Remote WL) |
1 port, PS2 USB 2.0, standard Type-B 802.11 b/g/n (802.11n up to 150 Mbps) (Only for communication with PV Main Unit) |
| Size (l x h x w) | 420 x 180 x 330 mm | 140 x 80 x 230 mm |
| Weight | 6.8 kg | 1 kg |
-
